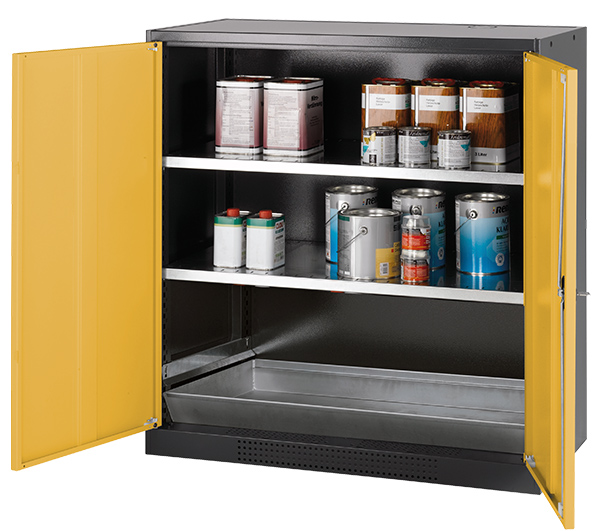

Chemicals cabinet model CS-102
Body colour anthracite grey (RAL 7016), with wing doors in warning yellow (RAL 1004), interior equipment with 2 x shelf, 1 x bottom collecting sump (sheet steel galvanised)
certification
- DIN EN 16121/16122 conformity
Function / construction
- Robust construction and longevity: robust, high-quality, scratch-resistant outer body with powder-coated textured surface
- No unauthorised use: doors lockable with cylinder locking (integrated in the turning handle)
- Easy alignment: adjusting aids to compensate for uneven floor
- Ventilation: natural ventilation due to ventilation openings at the cabinet bottom, ready for connection to a technical exhaust system
Order No.
202599
Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.
SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):
- Delivery including packaging material to behind the first locked door at ground level
- on a one-way pallet (without overcoming steps, stairs, etc.)
SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:
- - Delivery will be notified by asecos
- - highly recommended if you do not have your own trained staff available
The benefits for you:
- the installation at the desired location in the building (installation must be possible in advance
be clarified on the basis of a transport questionnaire to be completed by the customer) - the alignment of the cabinet
- taking away the packaging material
Not included are:
- - Use of crane or similar
- - A transfer time longer than 30 minutes
| External dimensions W x D x H | 1055 x 520 x 1105 mm |
| Internal dimensions W x D x H | 996 x 493 x 990 mm |
| Depth with open doors | 1.026,00 mm |
| Net weight configuration | 72,80 kg |
| Fire resistance level | No fire resistance |
| CE compliant | No (0) |
| GS certified | No (0) |
| According to standard | EN 16121/16122 |
| Automatic door closing system | No (0) |
| Door open arrest system | No (0) |
| extraction air connection | 75 DN |
| Minimum exhaust air quantity 10 times | 5 m³/h |
| Number of storage levels | 2 piece |
| Max. load of shelves | 100.00 kg |
| Capacity of bottom collecting sump | 27.00 litres |
| ecl@ss 14.0 | 40-06-01-03 |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| GTIN | 4054923047570 |
